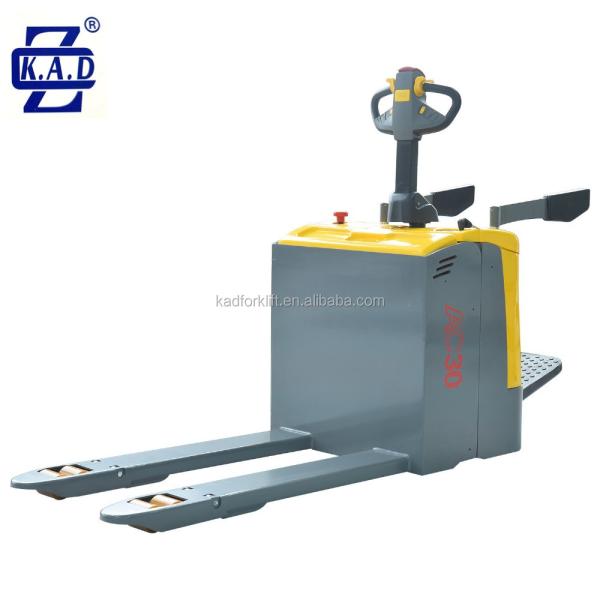

2 Ton 2.5 Ton 3 Ton Battery Operated Electric Pallet Truck AC Motor For Warehouse

Place of Origin : Jiangsu, China

Brand Name : KAD

Price : CN¥20,348.72/units 1-4 units

Applicable Industries : hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

Condition : New

Terrain Adaptability : Other

Power Souce : AC Motor

Fork Length : 1150mm

Fork Width : 550mm

Warranty : 1 Year

Type : Powered Pallet Truck

Color : Yellow/Grey

Tire : PU Wheel

Load Center : 600mm

Turning radius : 1700

Battery : 24v/210Ah

Load Capacity : 3000kkg

Width : 775MM

Fork Size : 55*170*1150/1220MM

Showroom Location : None

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Pressure vessel, motor, Bearing, Gear, Pump, Gearbox, Engine

Min. Lifting Height : 85mm

Overall Dimensions : 1850*775*1430mm

Weight (KG) : 685 kg

Contact Now

Product Description

Product Application

2ton 2.5ton 3ton All Electric AC Motor for Warehouse Battery Operated Electric Pallet Truck

Electric pallet truck is also called electric pallet jack or electric pallet car. It is suitable for heavy-duty and long-term cargo transshipment. It can greatly improve the efficiency of cargo handling and reduce labor intensity.he model is suitable for lifting and moving in small and medium warehouse and manufacturing facilities, where medium height rack system with narrow aisle is applied. However, the demands in big factories places also increases dramatically recently, where either have similar material storage area, or have individual working areas need self-respond equipment.

Model		CBD20	CBD30
Driving system		Battery	Battery
Driving mode		Standing	Standing
Load capacity	KG	2000	3000
Load center	MM	600	600
Weight(with battery)	KG	650	685
Wheel material		PU	PU
Lifting height	MM	120	120
Lowest mast	MM	1150/1430	1150/1430
Min. height of fork	MM	85	85
Length	MM	1780/1850	1850
Width	MM	775	775
Fork size	MM	551701150/1220
Wheelbase	MM	1271/1314	1314
Fork outside width	MM	550/685	685
Turning radius	MM	1600/1700	1700
Drive speed(Empty/ Full load)	MM/S	8/7.9	7/6.9
Lift speed(Empty/ Full load)	MM/S	0.056/0.039	0.056/0.039
Decend speed(Empty/ Full load)	MM/S	0.050/0.064	0.050/0.064
Max.gradient (Empty/ Full load)		20/8	20/6
Brake		Electromagnetic brake	Regenerative brake
Driving motor	KW	AC/1.2	AC/1.5
Lifting motor	KW	AC/1.2	AC/2.2
Battery capacity	V/Ah	24/210	24/210

2 Ton 2.5 Ton 3 Ton Battery Operated Electric Pallet Truck AC Motor For Warehouse

Main Features

1. Small body, light weight, can work in narrow passage, full load into elevator, and can work in light load floor.
2. All the control parts are concentrated at the end of the handlebars, which is easy to operate and does not require professional driving.
3. Using efficient AC traction motor has large traction force, walking speed and can bear heavy material handling.
4. The lifting system adopts the integral hydraulic pump station. When the lifting button is activated, the material can be lifted gently, the drop button is activated, and the hydraulic cylinder can be automatically restored, and the material can be slowly lowered.
5. The latest stepless speed regulation system of MOS transistor is selected for walking speed control. When operating, the speed of forward and backward can be controlled according to the loaded goods, surrounding environment and random control. If imported stepless speed regulation system is selected, a number of control procedures can be compiled, and the effect is better.

Detailed Images

Operating handle complies with ergonomics and is easy to operate. It is equipped with emergency reverse button at the top to ensure operator's safety.

Folding arm design, space saving, safe and reliable

Polyurethane casters with iron core, silent and wear-resistant

Strong cylinder and chain make fork run smoothly.
1-stage,2-stage,3-stage mast can be selected.

The battery is 24V/210Ah, and the ac motor saves much energy. You can use it for over 4 hours when charging one time.

Also the pallet truck has a gradient of 10°, can pass some slope easily.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas when you become our distributors

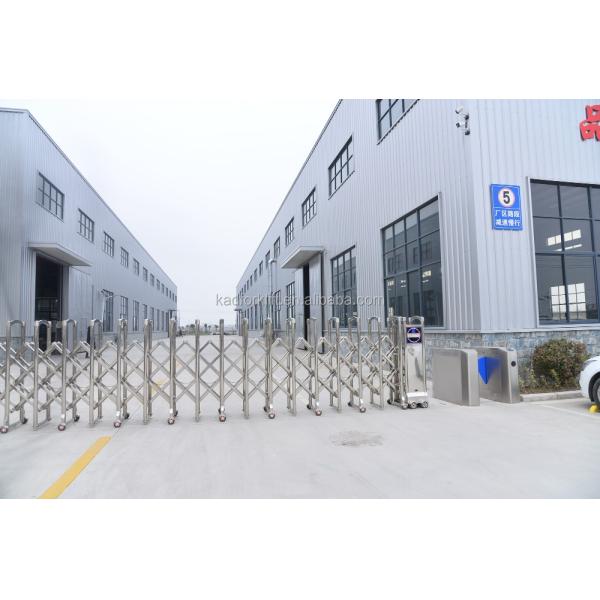

Our Company

Certifications

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet.
We can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
